power phase converter 120/240V split phase to 120/208V 3 phase

Phase-splitting to three-phase power converters are devices that transform single-phase or two-phase alternating current into standard three-phase alternating current, primarily addressing the following application requirements:

Powering three-phase equipment: Providing stable power supply for three-phase loads such as industrial motors, CNC machine tools, and lifts, particularly in areas without three-phase mains or subject to power restrictions.
Voltage matching and step-up: Elevates single-phase 240V to three-phase 380V to meet equipment rated voltage requirements.
Phase compensation and balancing: Generates three-phase power with a 120° phase shift through algorithmic control, preventing power imbalance issues that may arise during single-to-three-phase conversion.

AC input 120/240V 60HZ
AC output 120/208V 60HZ

Product Details

AC-DC-AC Conversion Structure:
Rectification Stage: Converts single-phase alternating current into direct current (AC-DC), providing a stable DC source for subsequent inversion.
Inverter Stage: Utilises high-frequency switching devices (e.g., IGBT, MOSFET,IPM) and PWM modulation technology to convert DC to three-phase AC (DC-AC), precisely controlling output voltage, frequency, and phase.
Phase Generation Algorithm: Employs techniques such as SVPWM (Spatial Vector Pulse Width Modulation) to generate accurate three-phase sine waves, ensuring 120° phase separation and low waveform distortion.
Key Technical Characteristics:
High Conversion Efficiency: Achieves conversion efficiency exceeding 94% with minimal no-load losses.
Rapid Dynamic Response: Exhibits short transient response times, adapting to sudden load variations.
Comprehensive Protection Features: Incorporates short-circuit, overload, and overtemperature protection to ensure safe equipment operation.

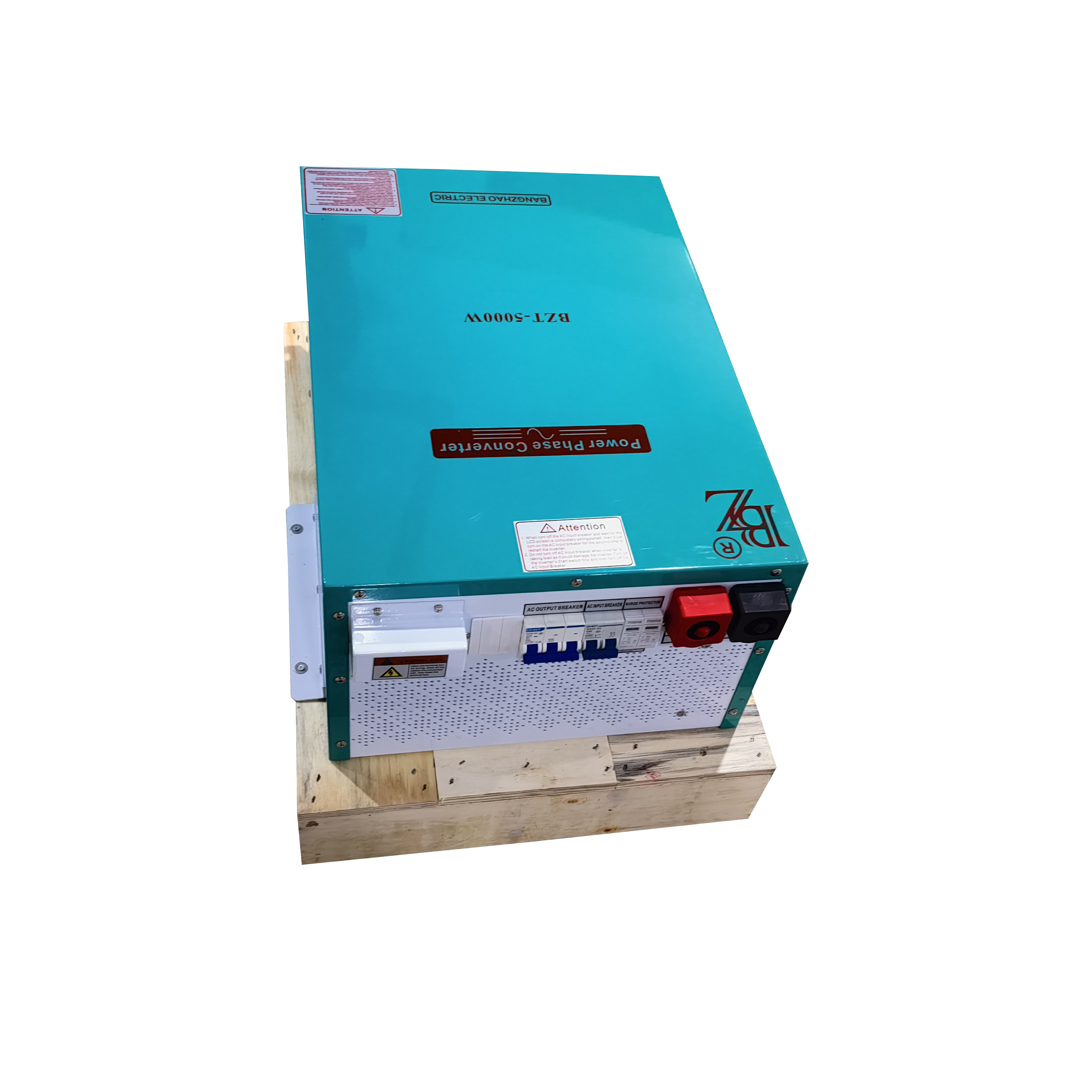

Stand type:

Split phase to 3 phase.jpg

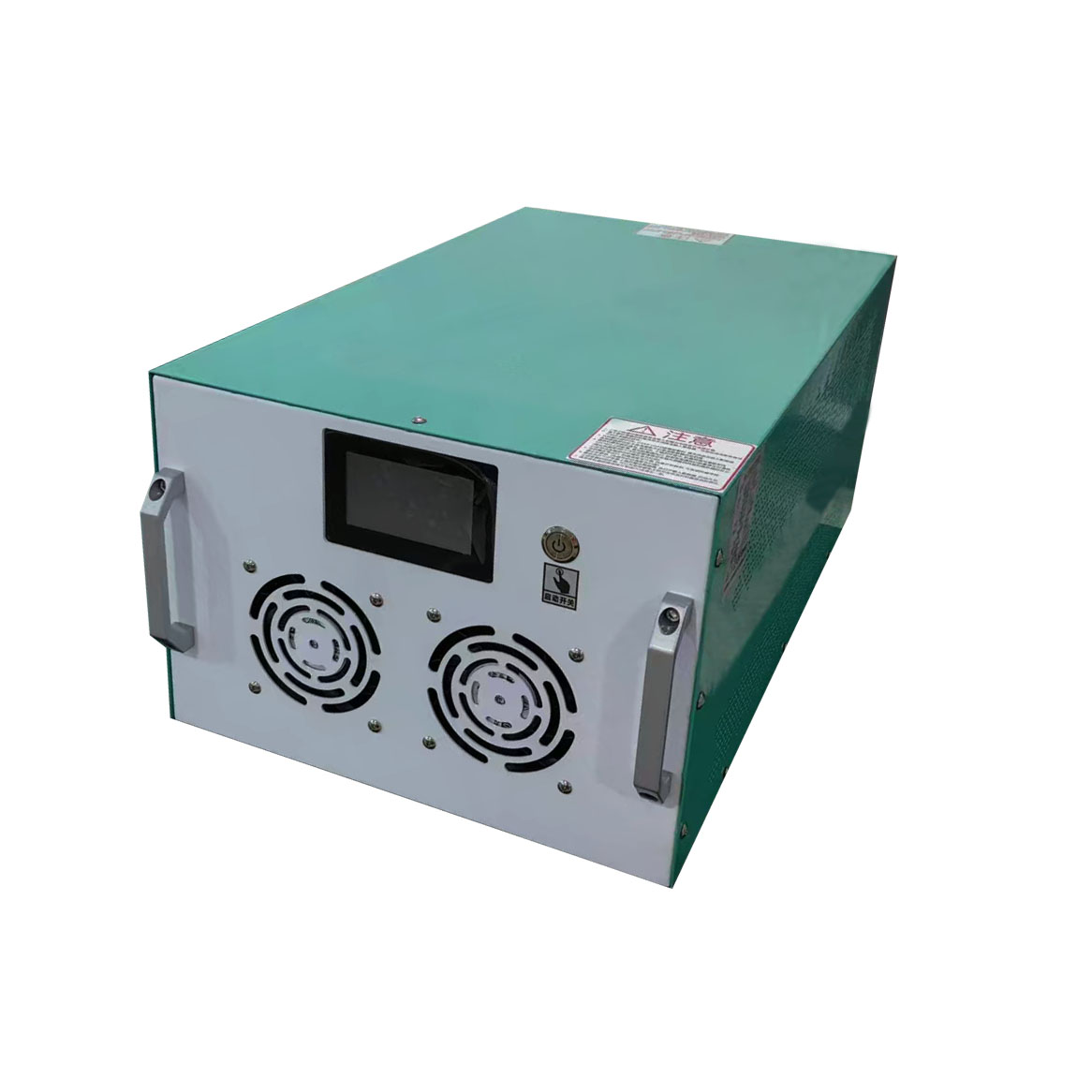

Rack type:


Principle: Integrates rectification, inversion and control modules to generate three-phase electricity via the SVPWM algorithm.
Applications: High-precision motor drives, off-grid renewable energy systems, industrial automation, etc.
Features: Produces pure output waveforms and supports variable-frequency speed control, though at a higher cost.

Industrial Motor Drives:
In factories lacking three-phase power, phase-splitting converters supply equipment such as CNC machine tools and compressors, ensuring uninterrupted production.
Case Study: An automotive components factory utilised BZT series converters to transform single-phase 220V into three-phase 380V, driving a 15kW motor with 90% efficiency and stable operation.
Off-Grid New Energy:
Within photovoltaic and wind power systems, converts single-phase DC to three-phase AC for load operation, enhancing energy utilisation efficiency.
Case Study: A distributed PV project employs converters to achieve seamless integration between single-phase PV panel outputs and three-phase AC load operation.
Emergency Power & Standby Systems:
Serves as supplementary three-phase power assurance for critical facilities such as data centres and hospitals, complementing UPS (Uninterruptible Power Supply) systems.
Case Study: A hospital utilised a phase-splitting three-phase converter to power operating theatre lifts during mains failure, ensuring safe patient transfer.
V. Selection and Usage Recommendations
Power Matching:
Select converter capacity based on load power, typically allowing a 20%-30% margin to accommodate start-up surges.
Example: For driving a 7.5kW motor, a converter rated at 10kVA or above is recommended.
Waveform Quality:
For inductive loads such as motors, prioritise output waveform distortion rate (THD) – select products with THD < 5%.
Environmental Adaptability:
In high-temperature, humid, or vibration-prone environments, opt for converters with mains-frequency isolation transformers to enhance stability.
