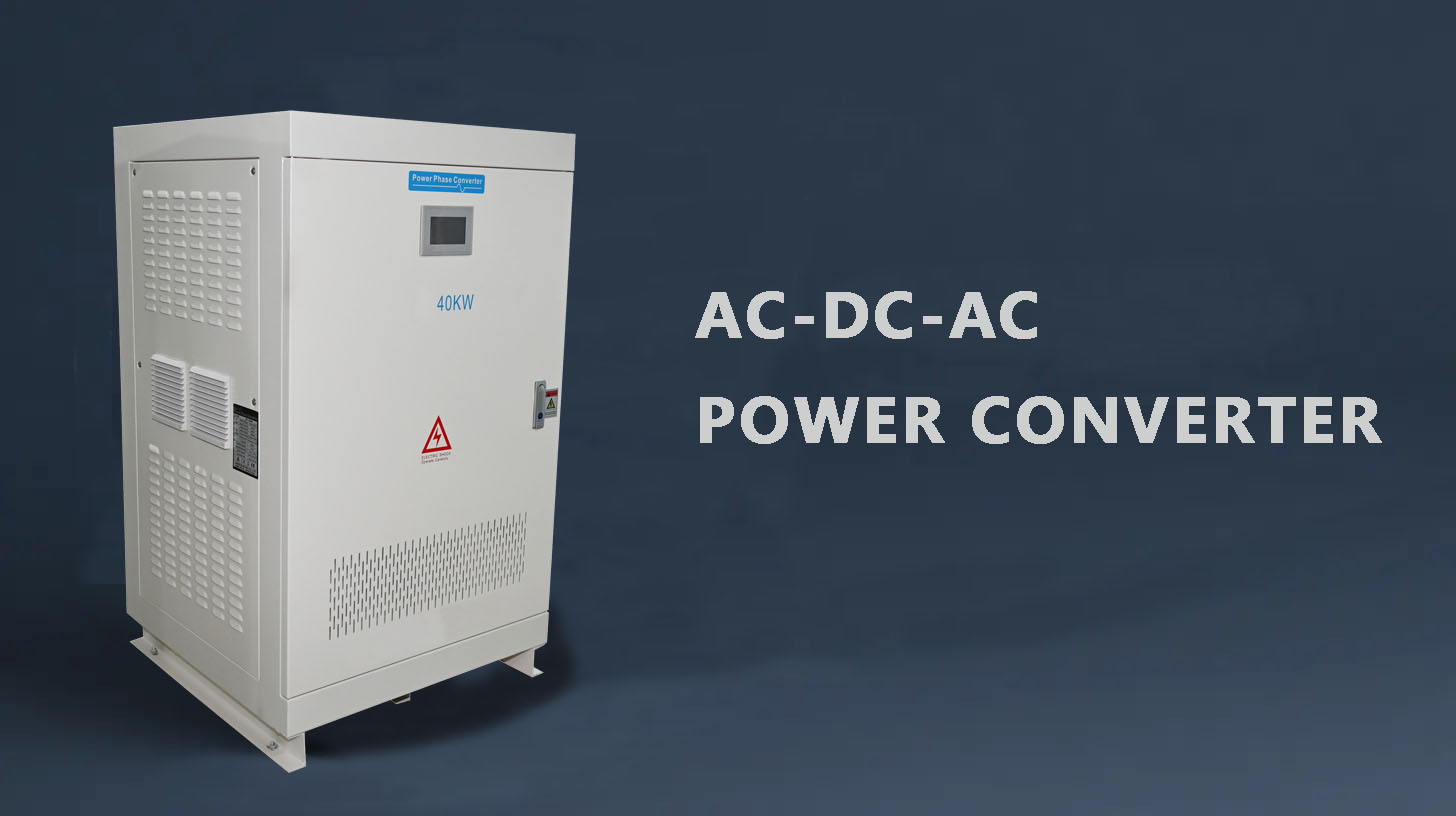

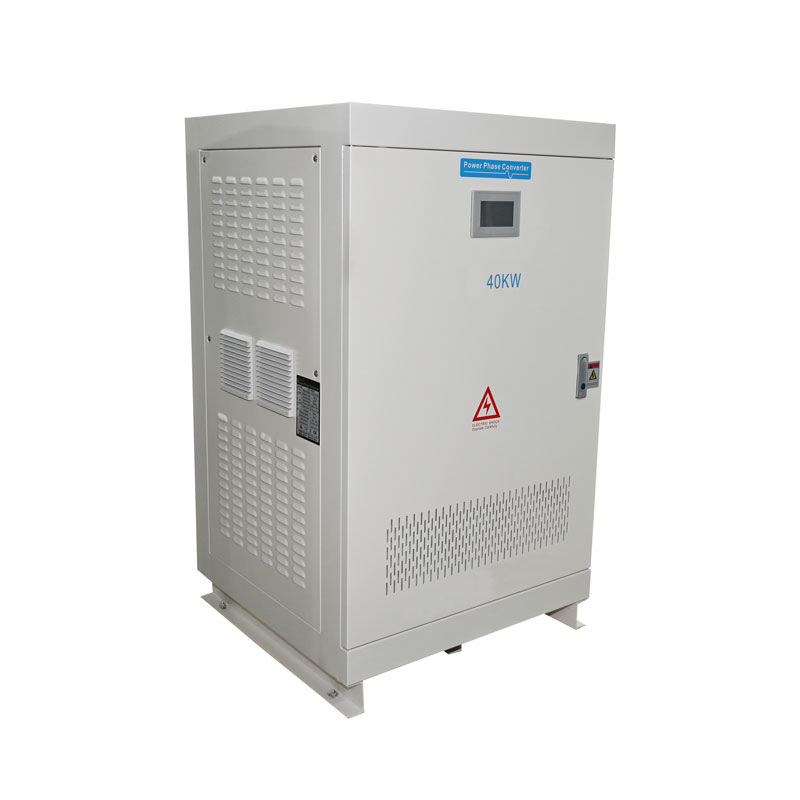

220V AC to 380V AC voltage converter
Reduce Initial Investment and Operating Costs
Replacing traditional dedicated transformer solutions saves over 60% in initial investment. For example, a 5kW converter driving a three-phase motor significantly lowers costs compared to applying for dedicated power lines. During long-term operation, stable voltage reduces equipment failure rates, extends the lifespan of critical components like motors and controllers, and lowers maintenance and replacement costs.
Cross-Border Equipment Adaptation and Market Expansion
Resolves compatibility issues for 60Hz equipment (e.g., imported machine tools from Thailand or Japan) operating on 50Hz grids. A case study of a multinational corporation's imported equipment adaptation demonstrates that the converter enabled seamless operation without frequency-related failures, supporting the company's international market expansion.
Product Parameters
|
Model |

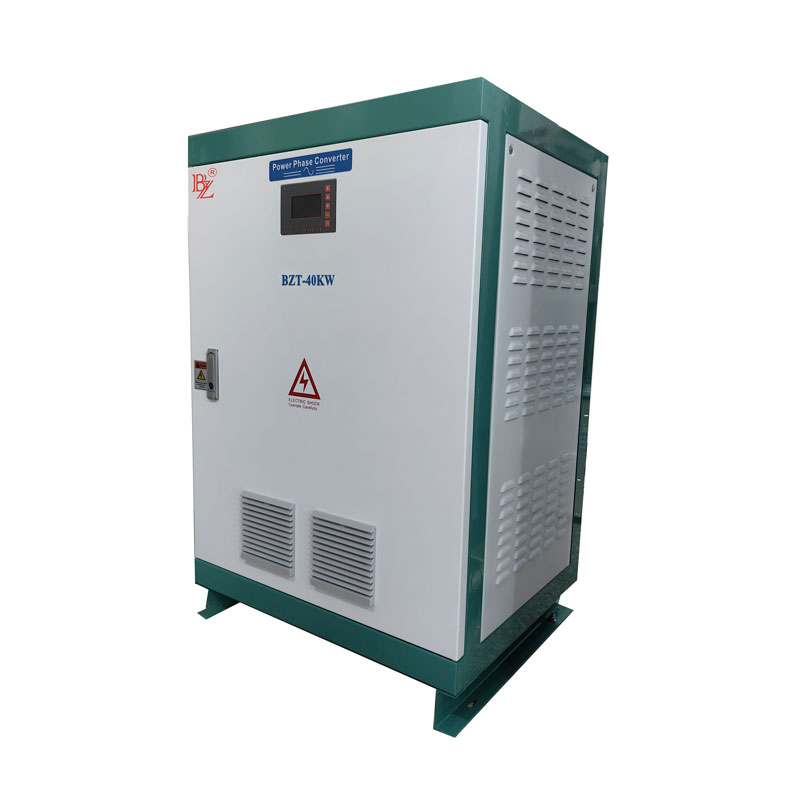

BZT-40KW |
||
|
Isolation mode |
Low Frequency Transformer |
||
|
AC Input |
Input rated voltage (Vac) |
Single phase 220V |
|
|
|
Input rated voltage range |
110/120/220/230/240V/380V/415V/440V/480Vac optional |
|
|
|
Input rated current（A） |
182A |
|
|
AC Output |
Rated output power |
40KW |
|
|
|
Output waveform |
Pure sine wave |
|
|
|
Phases |
Three phase, 4 wire |
|
|
|
Output rated voltage |
380VAC ±3% |
|
|
|
Output voltage range |
220/380/400/415/440/480Vac optional |
|
|
|
Output rated current |
60.6A (phase current) |
|
|
|
Output Frequency |
50Hz/60Hz±0.05Hz |
|
|
|
Power Factor（PF） |
1 |
|
|
|
Overload Ability |
150%, 10s |
|
|
|
Efficiency |
>90% |
|
|
|
Waveform distortion rate (THD) |
<3%（Linear load） |
|
|
|
Dynamic Response (0 to 100% load) |
5%，≤50ms |
|
|
|
Display |
LCD |
|
|
|
Running mode |
Working continuously |
|
|
|
Electrical insulation properties |
2000Vac, 1 Minute |
|
|
Protection function |
Protection |
Input under voltage, over voltage, output over-current, short circuit, overheating etc. |
|
|
|
Cooling method |
Fan-cooled |
|
|
|
Short-circuit protection |
No automatic recovery, need to restart the machine |
|
|
Working environment |
Ambient temperature |
-15~+55℃ |
|
|
|
Using environment humidity |
0~90%，No condensation |
|
|
|
Noise ( 1 meter) |
≤50dB |
|
|
|
Degree of protection |
IP20（indoor） |
|
|
|
Using altitude（m） |
≤2000 |
|
|
Dimension (mm) |
700x700x1480mm |
||
※Above details only for reference, could be custom made to user specifications.
