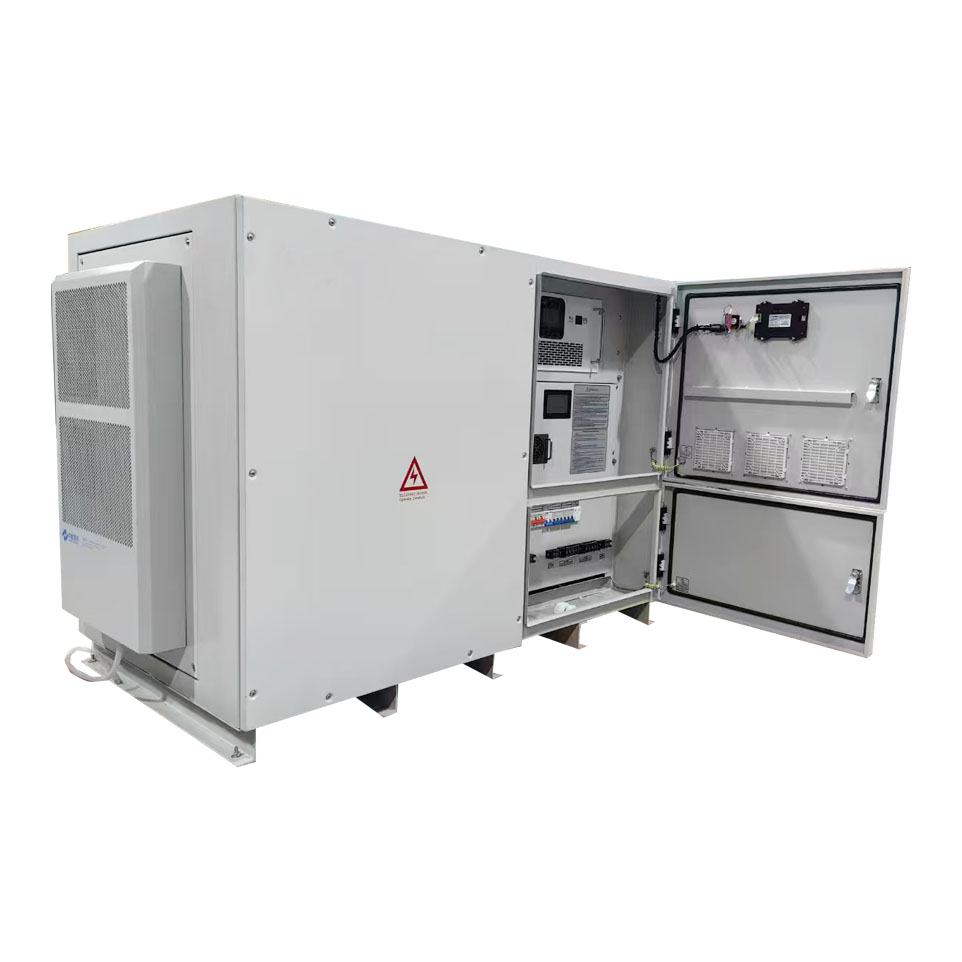

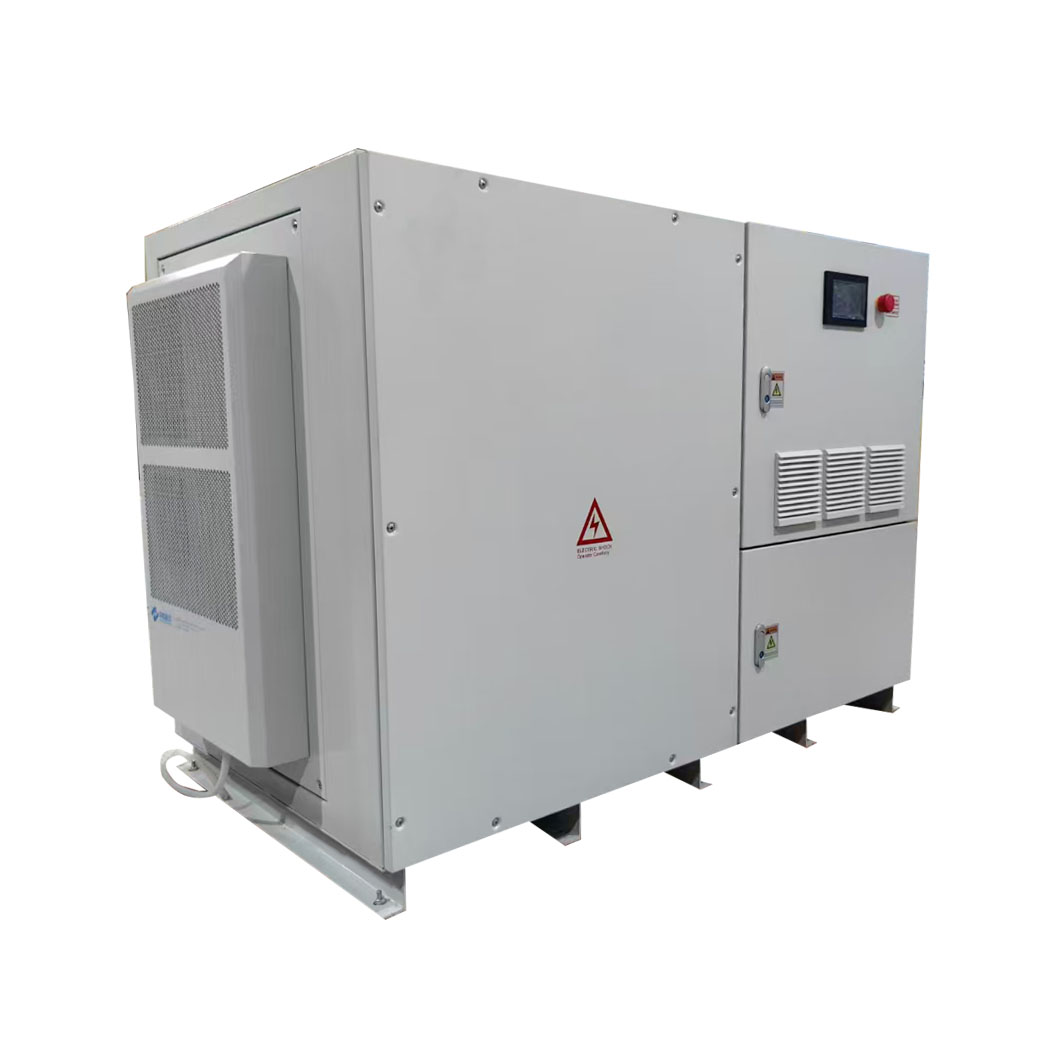

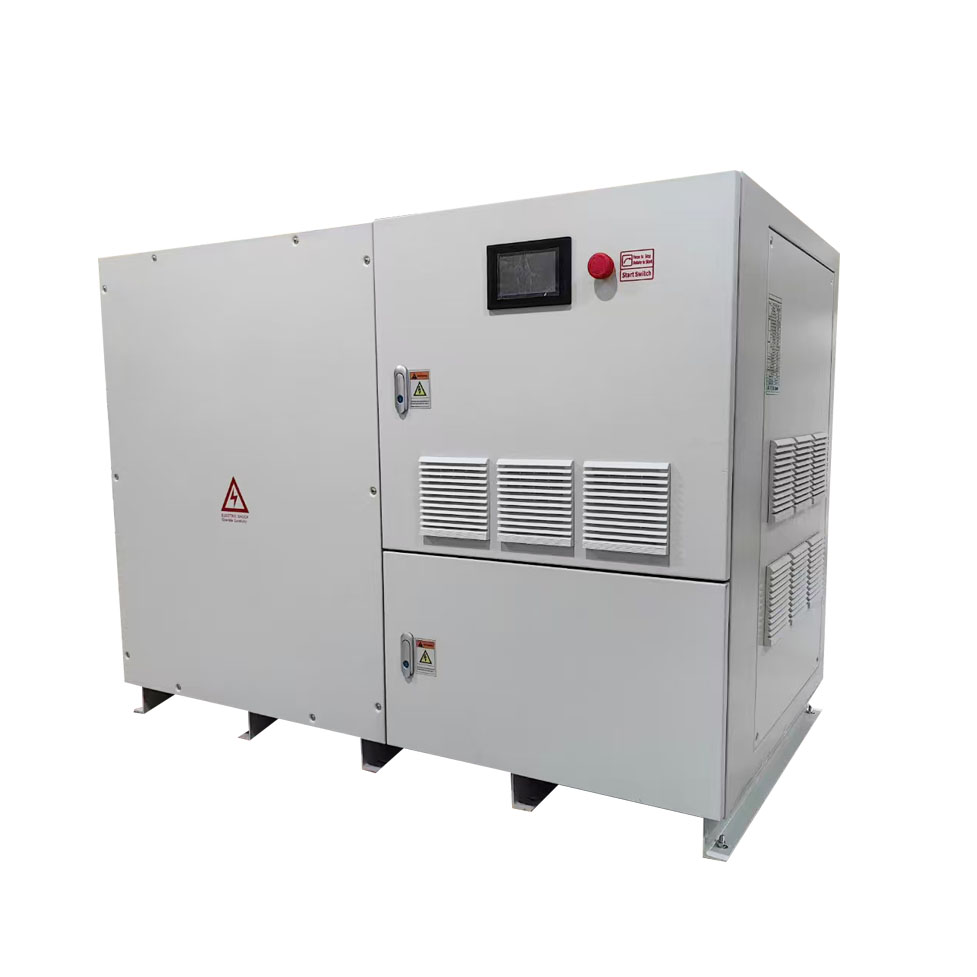

Photovoltaic-Electric Hybrid Energy Storage System
Photovoltaic Power Generation Unit: Utilizes high-efficiency monocrystalline or polycrystalline silicon photovoltaic panel arrays to capture solar energy through Maximum Power Point Tracking (MPPT) technology, converting light energy into direct current (DC) electricity.
Energy Storage and Conversion Unit: DC power is converted to AC via smart inverters and simultaneously stored in lithium iron phosphate (LFP) batteries. These batteries feature extended cycle life (≥5000 cycles), high safety, and wide operating temperature range (-20°C to 60°C), ensuring stable energy storage and release.
Intelligent Management System: An integrated EMS (Energy Management System) continuously monitors PV generation, battery status, and load demands. It intelligently schedules “self-generation for self-consumption with surplus storage,” supports grid-connected/off-grid dual-mode switching, and ensures uninterrupted power supply during outages.
|
Model |
SPVLI-48KWH-INV30KW |
|
|
Isolation mode |
Low Frequency Transformer |
|
|
Inverter Part |
||
|
Battery Input |
Rated Voltage (Vdc) |
460VDC |
|
Voltage range (Vdc) |
388-518V |
|
|
AC Output |
Rated output power |
30KW |
|
Output waveform |
Pure Sine Wave |
|
|
Rated Voltage |
120/240VAC |
|
|
Phases |
Split phase + N + PE |
|
|
Rated current (A) |
125A(Phase Current) |
|
|
Frequency |
60Hz |
|
|
Power Factor (PF) |
>0.95 |
|
|
Inverter Efficiency |
>92% |
|
|
Display |
LCD+LED |
|
|
Overload Ability |
150%, 35 seconds |
|
|
AC-DC Charger Part |
||
|
AC Input |
Voltage range(Vac) |
90-280Vac |
|
DC Output |
Rated voltage(Vdc) |
460Vdc |
|
Rated current(A) |
40A |
|
|
Lithium Battery Part |
||
|
Cell/Number |
105AH/144PCS |
|
|
Rated voltage |
460V |
|
|
Max charge current |
50A |
|
|
Max discharge current |
50A |
|
|
Charge temperature range |
0ºC ~ 50ºC |
|
|
Discharge temperature range |
-20ºC ~ 50ºC |
|
|
Cell charge end voltage |
3.6V |
|
|
Cell discharge end voltage |
2.7V |
|
|
Protection Function |
Protection |
Input reverse polarity, under voltage, over voltage, output over-current, short circuit, overheating etc. |
|
Cooling method |
Fan-cooled |
|
|
Degree of protection |
IP20(indoor) |
|
