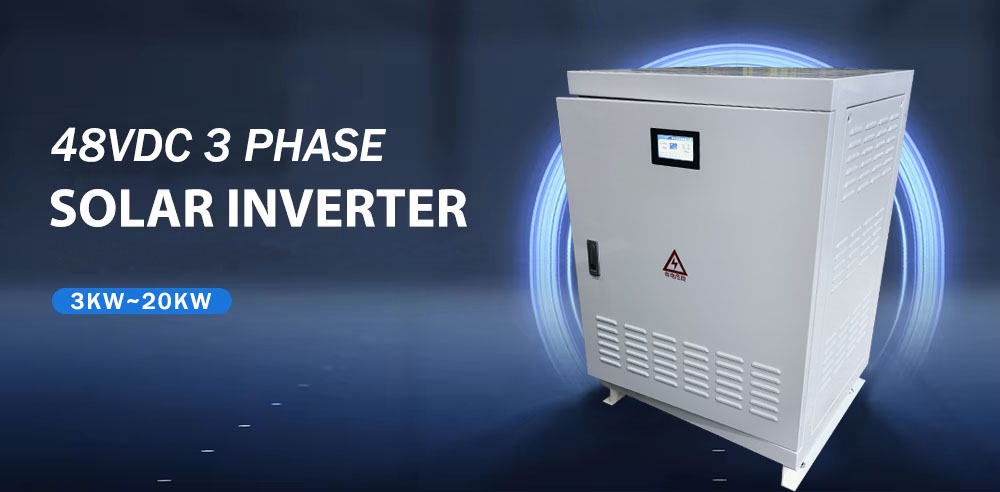

Power Frequency Isolation + Pure Sine Wave: 3 Phase Solar Power Inverter for Self-Generation and Self-Consumption

According to a June 2025 report by Electronic Enthusiast Network, power frequency isolated inverters achieve electrical isolation through 50Hz power frequency transformers, offering three core advantages:

Exceptional Safety Performance: Blocks common-mode currents between bridge arms and ground, eliminating electric shock risks while preventing distribution transformer saturation;
Wide Voltage Adaptability: DC input voltage range exceeds 3 times the nominal value, accommodating solar panels' wide voltage output;
Pure Sine Wave Output: Harmonic distortion rate <3%, perfectly matching the requirements of precision equipment, motor loads, and medical devices. Compared to modified sine wave inverters (harmonic distortion >20%), it significantly extends equipment lifespan and enhances operational efficiency.

Application Scenarios: Comprehensive Coverage from Residential to Commercial Settings

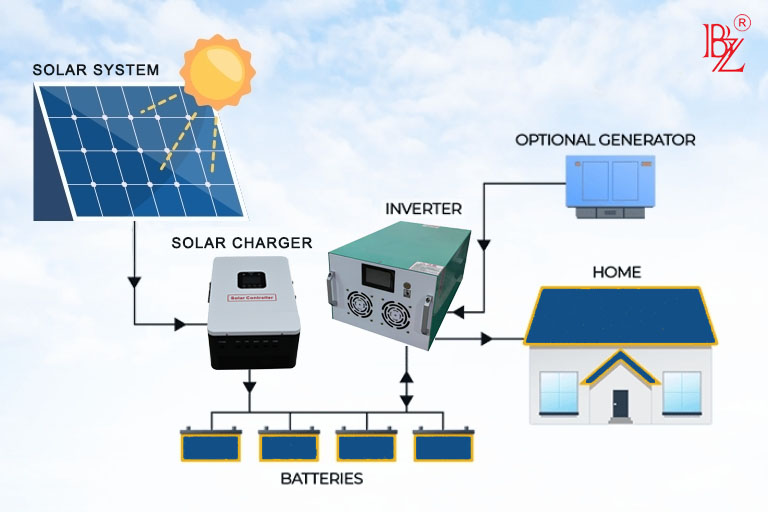

Residential Self-Generation and Self-Consumption System: The Shila Photovoltaic Power Station in Chuxiong, Yunnan, achieves simultaneous generation and consumption through utility-frequency isolated inverters. For instance, 280V DC input is converted by the inverter into 220V pure sine wave AC power, directly driving appliances like air conditioners and refrigerators, while surplus electricity is stored in lithium battery packs. The system features a modular design, with individual inverters delivering up to 3kW of power and supporting multi-unit parallel expansion to megawatt-scale capacity.

Outdoor Emergency and Commercial Backup: In outdoor camping scenarios, portable inverters power induction cookers and lighting fixtures via vehicle batteries, with pure sine waves ensuring stable device operation. In commercial buildings, utility-frequency isolated inverters serve as backup power sources, maintaining continuous operation of critical loads such as servers and medical equipment during mains power interruptions.

Power frequency isolationcombined with pure sine wave technology establishes a secure, efficient, and compatible self-generation and self-consumption power system through physical isolation and waveform optimization. From residential to commercial applications, and from outdoor to industrial settings, this technology is driving the deep integration of renewable energy, providing core support for the global energy transition. As smart grid and energy storage technologies converge, Solar Inverters will continue to evolve, ushering in a new chapter for green energy.
