Outdoor Direct Drive, Power Without Worries | Comprehensive Technical Analysis of IP65 Solar Pump Inverters (3.7KW-22KW)

1. What is a Solar Pump Inverter?

A solar pump inverter is the "brain" of a solar pumping system. It converts the direct current (DC) generated by the solar array into three-phase alternating current (AC) to drive the water pump motor.

For the 3.7KW to 22KW power range, these devices are specifically designed for medium to large-scale irrigation systems, featuring the following core characteristics:

• Battery-free Design: The system directly utilizes solar power to pump water, eliminating the need for expensive and maintenance-heavy storage batteries.
• High-voltage MPPT: Supports a wide voltage input of 400-850VDC, tracking the maximum power point in real-time with an energy conversion efficiency of up to 99%.
• Outdoor IP65 Protection: No additional distribution cabinet is required. It can be installed directly outdoors, offering high-temperature resistance and dust/waterproofing.

2. Core Technical Specifications Overview

3. Solar Pump Inverter vs. Standard VFD: What's the Difference?

Many users ask: "Can I use a standard industrial Variable Frequency Drive (VFD) to run a solar pump?" The answer is: It is extremely inefficient and risky.

4. Why Choose IP65 Solutions for the 3.7KW-22KW Range?

① Reduce Installation Costs

Traditional off-grid systems require a "control cabinet + VFD + fan cooling," which easily accumulates dust and overheats in field environments. The IP65 solution uses a die-cast aluminum casing with natural heat dissipation, allowing for flexible installation directly behind the solar mounting structure.

② Hybrid Power: 24-Hour Water Supply Solution

With an optional complementarity module, the inverter prioritizes solar energy when sunlight is sufficient and automatically switches to the grid or a diesel generator at night or on rainy days, ensuring uninterrupted irrigation.

③ Soft Start and Comprehensive Protection

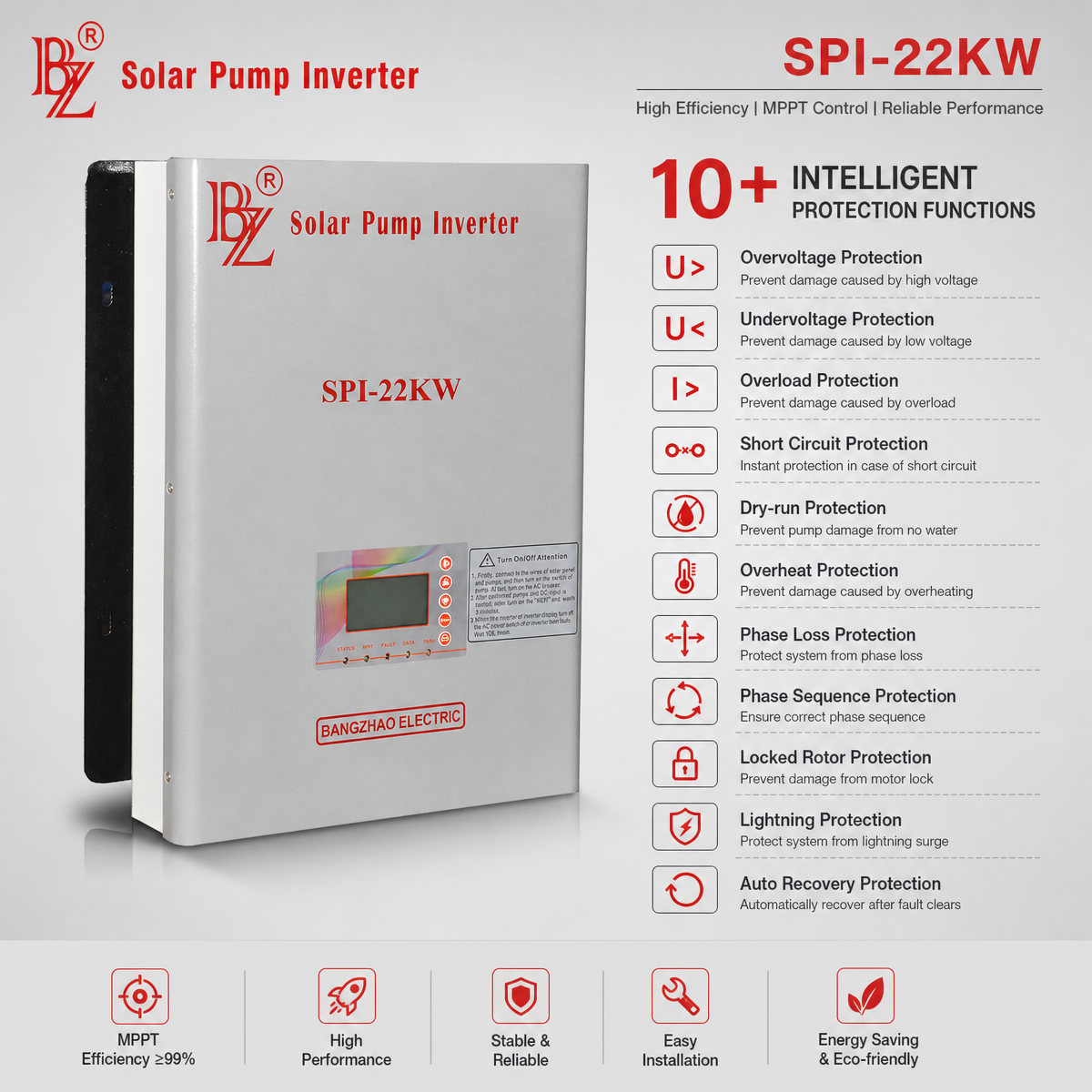

For high-power motors, the inverter provides full protection against under-voltage, over-voltage, over-current, overload, short circuits, and dry-run, significantly extending the water pump's lifespan.

5. Expert Perspective: FAQ

Q1: Can this inverter directly drive common three-phase water pumps used at home? Yes. It outputs standard three-phase AC power. As long as the pump power is within the 3.7KW-22KW range, it can be driven directly without needing to replace the motor.

Q2: What does MPPT 400-850V mean for the number of solar panels? It is recommended that the total open-circuit voltage (Voc) after series connection does not exceed 900V. Generally, we suggest configuring 18-22 monocrystalline modules per string to ensure the voltage stays within the optimal MPPT range.

Q3: What happens to the inverter if there is no sunlight at all? The inverter will automatically enter sleep mode. If the hybrid power function is configured, it will detect the AC input and switch to it to continue working.

Q4: Why are no batteries needed? The system uses "water storage" instead of "electricity storage." Water is pumped into a reservoir or water tower during sunny hours for use when there is no sun, reducing storage costs by over 60% compared to battery banks.

[Summary] The IP65 Solar Pump Inverter (3.7KW-22KW) is the ideal choice for automated agricultural irrigation and industrial water supply today. It not only solves power issues in off-grid areas but also delivers a true "set and forget" economic benefit through IP65 protection and battery-free direct drive technology.

If you are interested in solar water supply systems or need a specific configuration (e.g., panel ratio calculation), please feel free to leave a message for a consultation!
