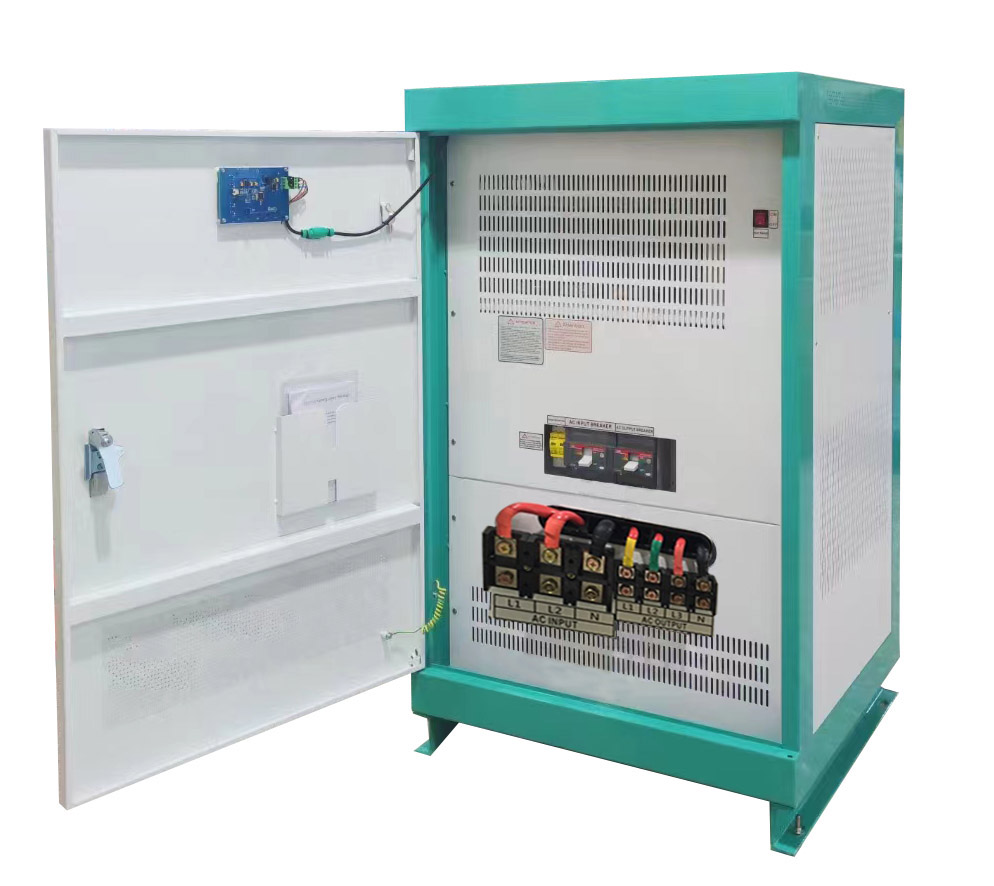

AC Power Converter: 110/220V US Standard to 380VAC GB Standard, Isolated Power Supply

Technical Breakthrough: Mains Frequency Isolation + Dual-Stage Conversion Ensures Power Quality
The converter's front stage employs PWM rectification technology to convert US standard single-phase 120/240VAC (L1+L2=240V, L1/L2+N=120V) 60Hz input into high-voltage direct current, achieving unity power factor operation with input current THD ≤3%, significantly reducing grid pollution. Intermediate power frequency isolation transformers provide electrical isolation, blocking harmonics, surges, and other disturbances to deliver a pure DC source for the downstream inverter. The downstream stage employs an SVPWM (Space Vector Pulse Width Modulation) algorithm to invert into a standard three-phase 380VAC/50Hz pure sine wave. Voltage stability reaches ±3%, frequency accuracy ±0.1Hz, waveform distortion rate ≤3%, conversion efficiency up to 90%, and no-load losses below 1.5%.

Case Study: From Production Line Stagnation to Efficient Operation
Taking Zhejiang Bangzhao Electric's BZT-30KW converter as an example, during CNC machine testing at a German machine tool manufacturer's Chinese facility, this equipment successfully drove a 15kW three-phase asynchronous motor. The output voltage waveform synchronised with the grid, while motor temperature rise was reduced by 12°C compared to square-wave inverters. In cross-border equipment adaptation scenarios, the Zolvan integrated frequency converter and transformer power supply resolved equipment failures on an automated production line in Houston, USA, caused by ±10% grid voltage fluctuations: Through its 480V/240V wide-range input, precise 380V±1% output, and 12-fold coordinated protection (overvoltage/undervoltage, short circuit, overtemperature, etc.), the production line's pass rate increased from 82% to 99.2%, motor bearing lifespan doubled, and energy consumption decreased by 30%.

Expert Analysis: The Irreplaceable Nature of Mains-Frequency Isolation Technology
Power electronics specialists note that while power frequency isolation converters suffer from traditional drawbacks such as bulkiness and high cost, they offer irreplaceable advantages in safety and electromagnetic compatibility. Through isolation via power frequency transformers, these devices effectively block grid DC components, prevent distribution transformer saturation, and simultaneously eliminate direct human contact with live components, thereby enhancing system safety. In applications demanding exceptionally high power quality—such as medical equipment and marine electrical systems—power frequency isolation technology remains the preferred solution.
