LCD Smart Series

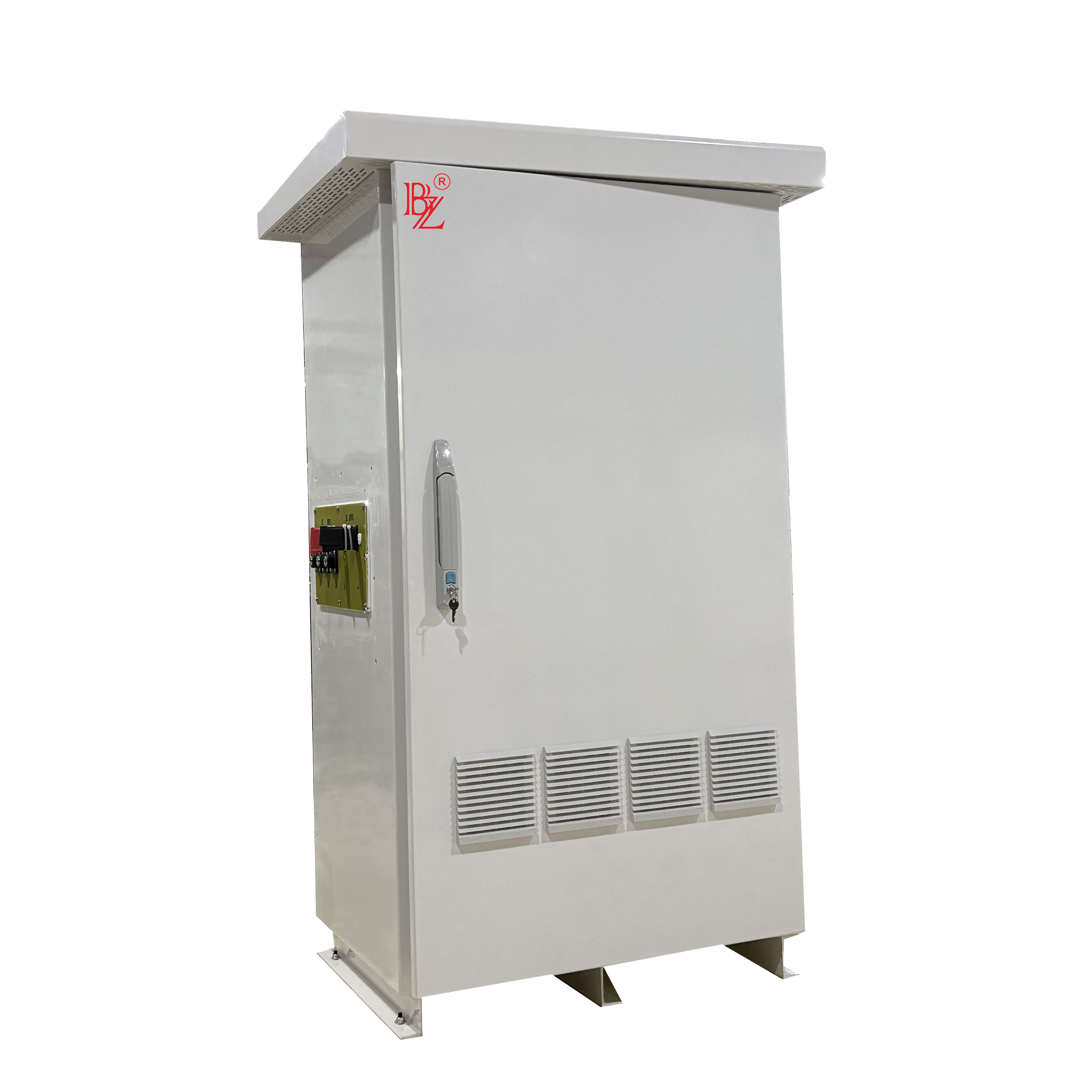

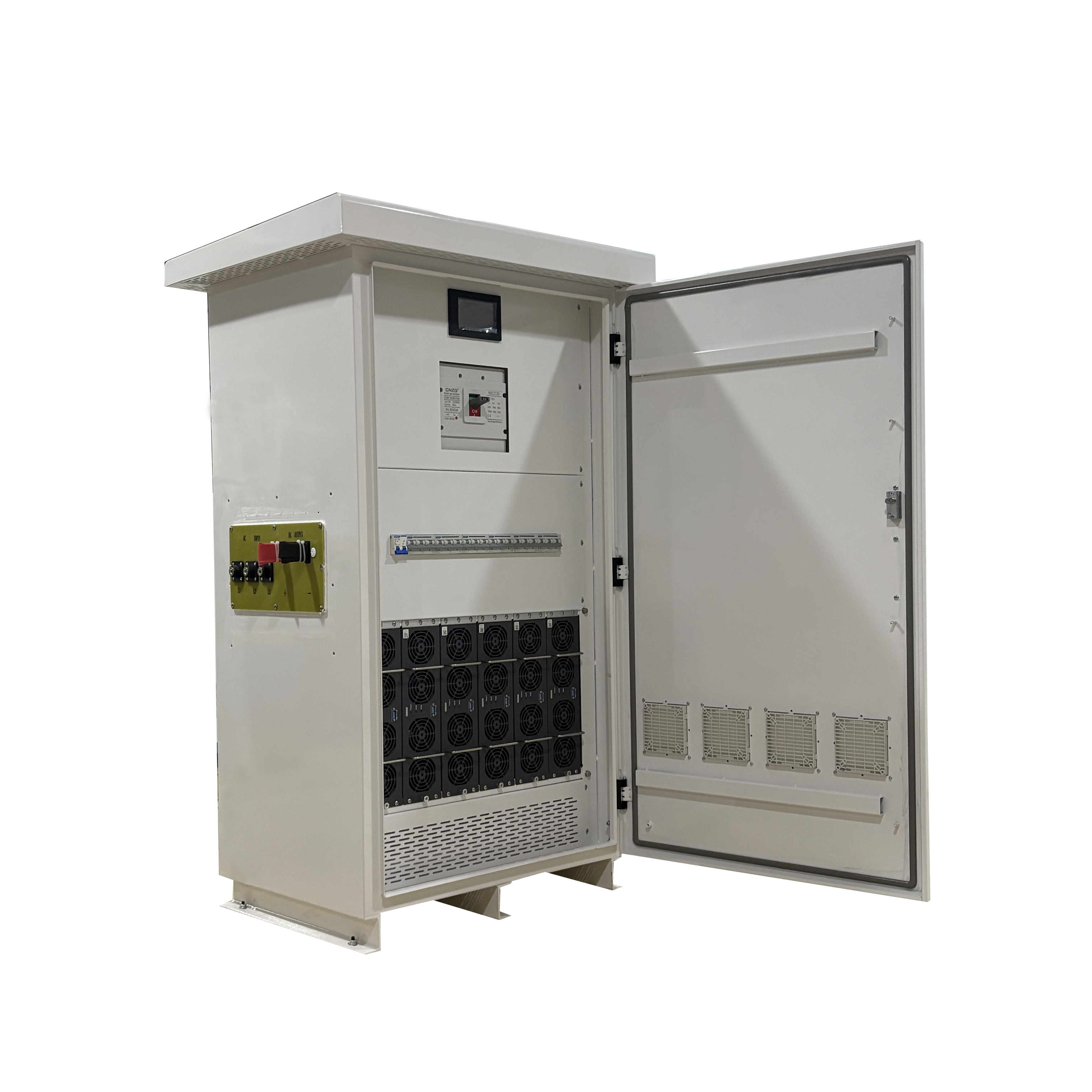

IP54 outdoor 240KW 800A 3 phase charger
In terms of safety, the charger is equipped with a hard-switch input/output dual-protection circuit breaker, establishing a robust safety barrier. Additionally, it integrates multiple protection mechanisms—including overheating, short-circuit, overload, overvoltage, and undervoltage protection—to comprehensively safeguard charging safety and ensure worry-free use for users.
Regarding charging management, this product supports customizable parameter settings, including key metrics such as average charging voltage, float voltage, and charging current, to meet the charging needs of different battery types. It also offers three charging modes—scheduled, manual, and automatic—to flexibly accommodate various charging scenarios.
Notably, this charger features a scheduled start/stop function. This innovative design effectively prevents prolonged overcharging, not only saving energy but also significantly extending battery lifespan—a unique advantage not found in many DC power panel battery chargers.
Furthermore, the charger supports the RS485 standard communication protocol, enabling remote monitoring and intelligent control. It allows for precise adjustment of charging voltage, current, and start/stop status, seamlessly integrating with lithium-ion BMS systems to provide a more accurate and efficient charging solution for lithium-ion batteries, making it the ideal choice for modern smart charging equipment.
|
Category |
Name |
Parameter |
|
Environmental conditions |
Operation temperature |
-40°C ~ +75°C, derating is require when the temperature is above 55°C. |
|
Storage temperature |
-40°C ~ +70°C |
|
|
Relative humidity |
≤95%RH, without condensation |
|
|
Cooling mode |
Forced air cooling |
|
|
Altitude |
2,000 m a.s.l., derating is require when the altitude is above 2,000 m a.s.l. |
|
|
Atmospheric pressure |
79 kPa ~ 106 kPa |
|
|
AC input |
Input system |
Three phases + PE |
|
Rated voltage |
380 Vac |
|
|
Voltage range |
260 Vac ~ 530Vac |
|
|
Maximum current |
480A |
|
|
Rated frequency |
50Hz/60Hz |
|
|
DC output |
Voltage range |
50~1000V |
|
Current range |
1~800A |
|
|
Rated current |
800A@400V (required for setting of current limiting point,1000V is 240A) |
|
|
Steady voltage precision |
<±0.5% |
|
|
Steady current precision |
≤±1% (rated range of 20% ~ 100% for output load) |
|
|
Load regulation rate |
≤±0.5% |
|
|
Startup overshoot |
≤±3% |
|
|
Peak-to-peak value noise |
≤1% (50~1000V, 0~20MHz) |
|
|
Power factor and THD |
Power factor |
≥0.95 Full-load output power of @20%~50% |
|
≥0.98 Full-load output power of @50%~100% |
||
|
≥0.99 Full-load output power, input nominal voltage and frequency of @100% |
||
|
THD |
≤5% Full-load output power of @50%~100% |
|
|
Efficiency |
Under Rated input voltage |
≥95.2％，@750V，50％～100％ |
