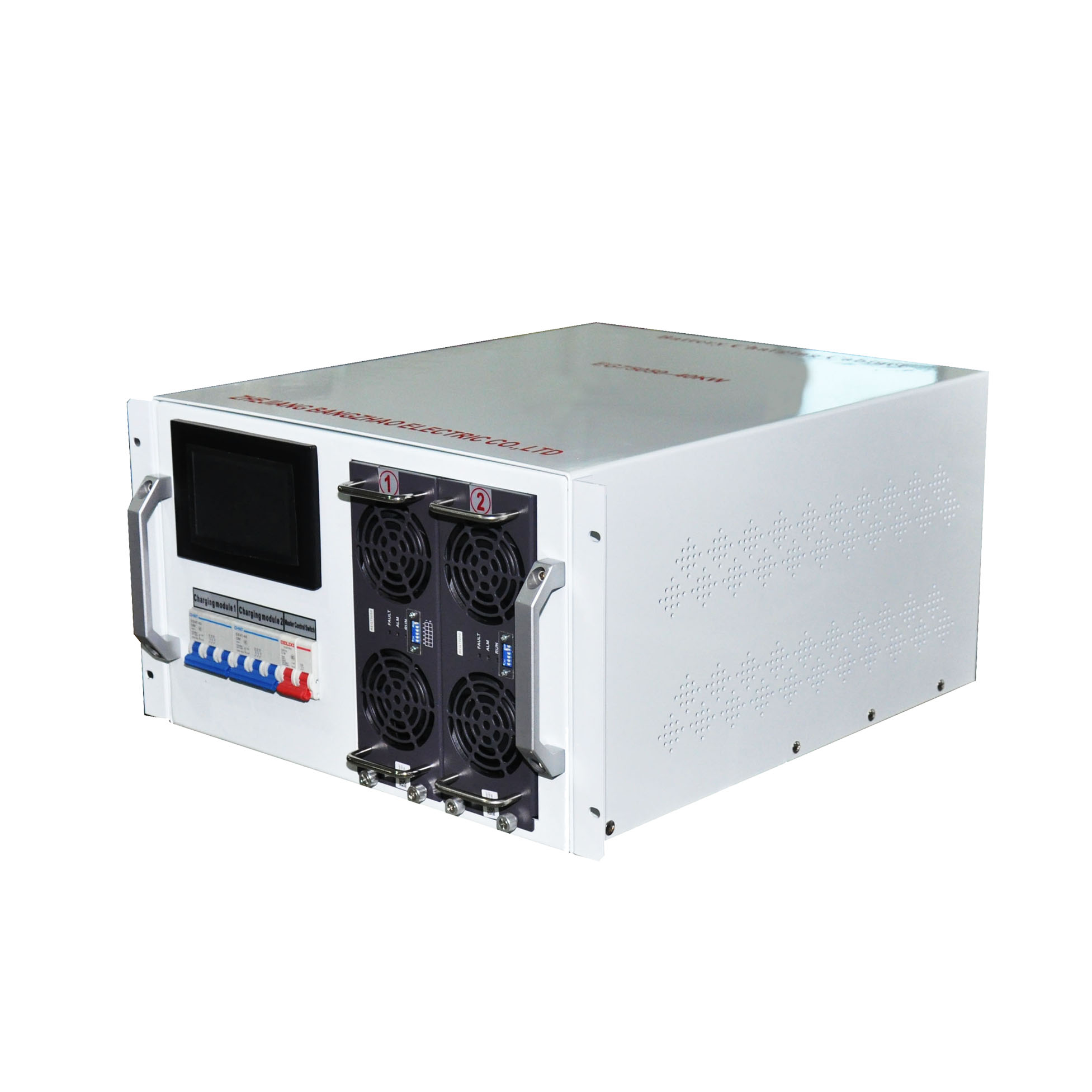

50-750VDC 100A High Voltage Lithium Battery Charger

The BEG75050-40KW is a DC charging module specifically engineered for the rapid charging requirements of electric vehicles. Through innovative circuit design and manufacturing breakthroughs, it achieves core advantages including a wide constant-power voltage range, high efficiency across the entire load spectrum, high power density, and ultra-low electromagnetic interference, attaining internationally advanced standards. Its energy-saving and environmentally friendly characteristics are significant, effectively reducing operational energy consumption at charging stations and meeting global low-carbon development demands.
It suitable for Lead-acid battery, GEL battery, Lithium iron phosphate battery, Fuel cell and so on.

AC Input 260-530V
DC Output 50-750V
Output Current 1-100A
Rated Power 40KW

Product Details

Parameter

Application

1.Large, medium and small electric vehicle charging stations;

2.High-speed service areas, stations, docks and other transportation hub areas;

3.Public places such as urban residential areas, shopping plazas and electric business places.

Product Features

Extended voltage coverage: DC output ranging from 50Vdc to 750Vdc, with constant power operation spanning 400Vdc to 750Vdc. Compatible with the full spectrum of battery packs from low-speed electric vehicles to heavy-duty logistics vehicles, enabling ‘one module for multiple vehicle types’ charging compatibility.

Exceptional Energy Efficiency: Efficiency ≥95% across the entire load range, significantly outperforming the industry's traditional pattern of high efficiency at low loads and low efficiency at full loads. Standby power consumption <9W. Combined with a wide AC input range of 260Vac-530Vac, it adapts to global grid environments. The three-phase design without a neutral line simplifies system wiring, reducing neutral line current risks and system costs.

High Power Density and Reliability: High power density with compact dimensions to save space within charging stations. Dual DSP fully digital control architecture enables damage-free hot-swapping, battery backflow protection, and intelligent discharge functionality. Automatic residual charge discharge enhances system safety levels.

Environmental Adaptability and Protection: Operates across a wide temperature range of -40°C to +75°C, with intelligent derating above +55°C. Features an innovative triple-protection design resisting salt spray, moisture, and mould, making it suitable for harsh coastal and high-humidity environments. Minimal electromagnetic radiation and interference.

Product Parameter

Category	Name	Parameter
Model		BEG75050-40KW
Environmental conditions	Operation temperature	-40°C ~ +75°C, derating is require when the temperature is above 55°C.
	Storage temperature	-40°C ~ +70°C
	Relative humidity	≤95%RH, without condensation
	Cooling mode	Forced air cooling
	Altitude	2,000 m a.s.l., derating is require when the altitude is above 2,000 m a.s.l.
	Atmospheric pressure	79 kPa ~ 106 kPa
AC input	Input system	Three phases + PE
	Voltage range	260 Vac ~ 530 Vac
	The maximum static voltage borne under no operation	600 Vac
	Rated voltage	400 Vac
	Maximum current	64A
	Grid frequency	45 Hz~ 65 Hz
	Rated frequency	50Hz/60Hz
DC output	Voltage range	50 Vdc ~ 750Vdc
	Current range	0 ~ 66.6A (high voltage)/ 0~100A(low voltage)
	Rated current	52A@750V (required for setting of current limiting point,750V is 53.34A)
	Steady voltage precision	<±0.5%
	Steady current precision	≤±1% (rated range of 20% ~ 100% for output load)
	Load regulation rate	≤±0.5%
	Grid regulation rate	≤±0.1% (testing range is 320V ~ 530V)
	Startup overshoot	≤±3%
	Peak-to-peak value noise	≤1% (150~750V, 0~20MHz)
Power factor and THD	Power factor	≥0.95 Full-load output power of @20%~50%
		≥0.98 Full-load output power of @50%~100%
		≥0.99 Full-load output power, input nominal voltage and frequency of @100%
	THD	≤5% Full-load output power of @50%~100%
Efficiency	Under Rated input voltage	≥95.2％，@750V，50％～100％
