LCD Smart Series

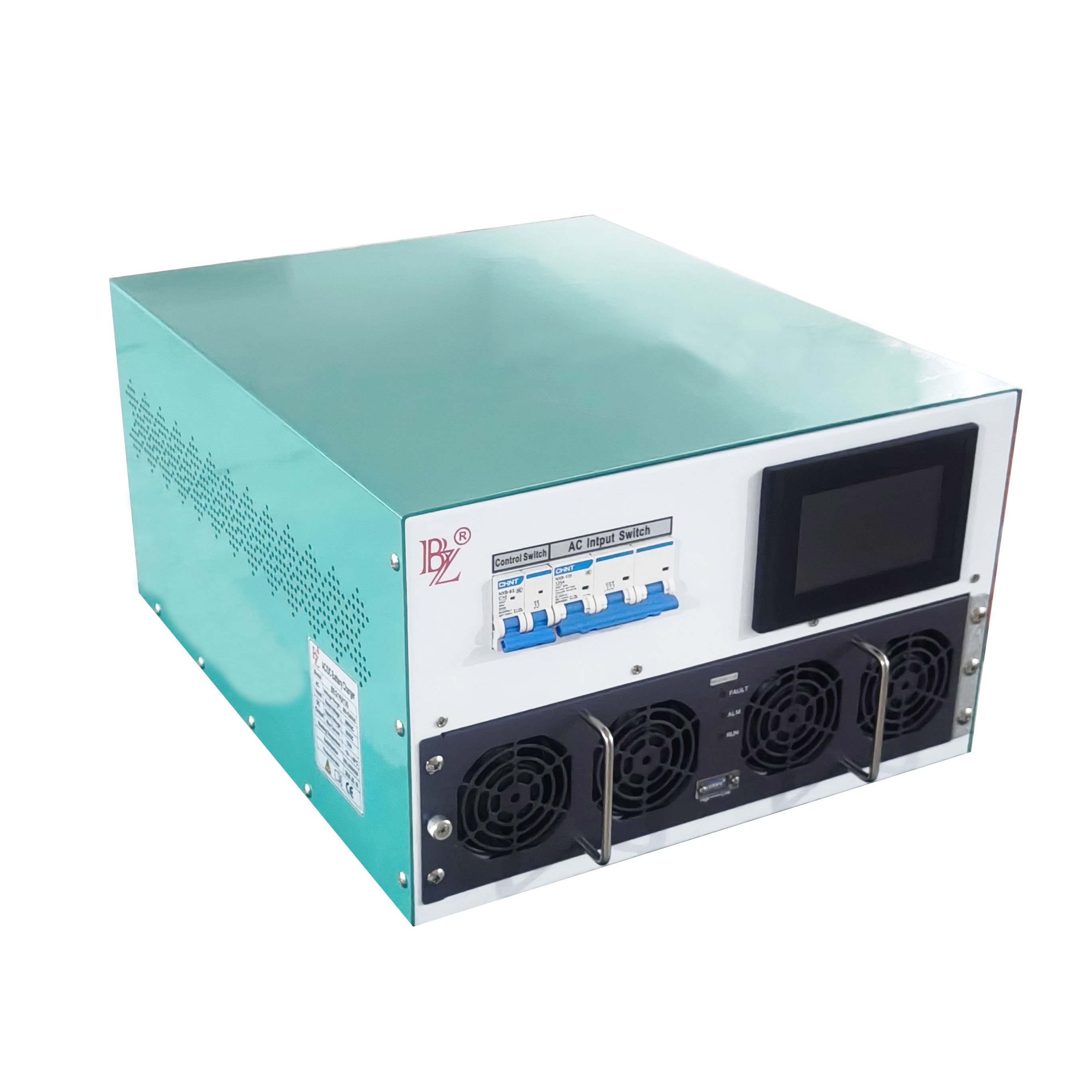

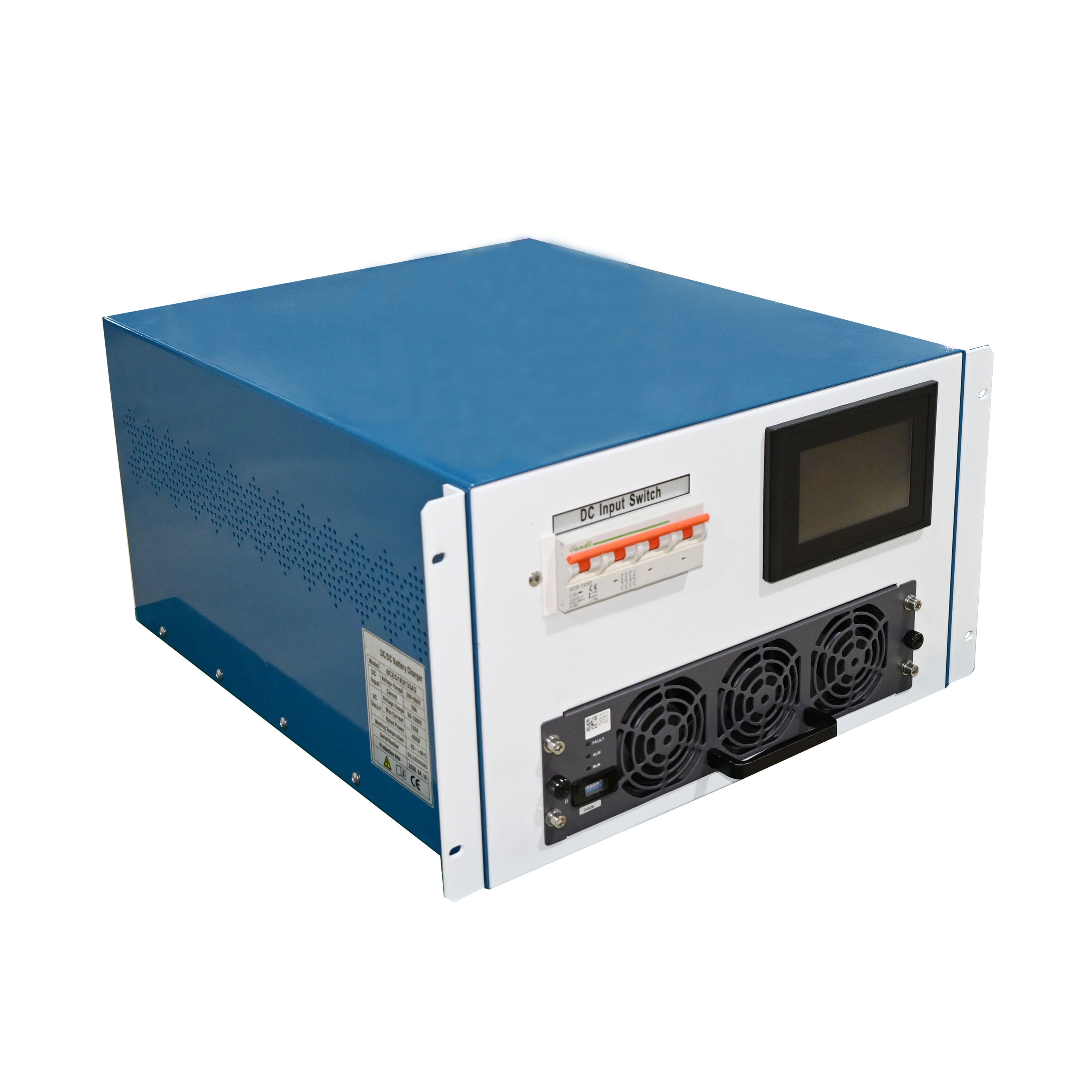

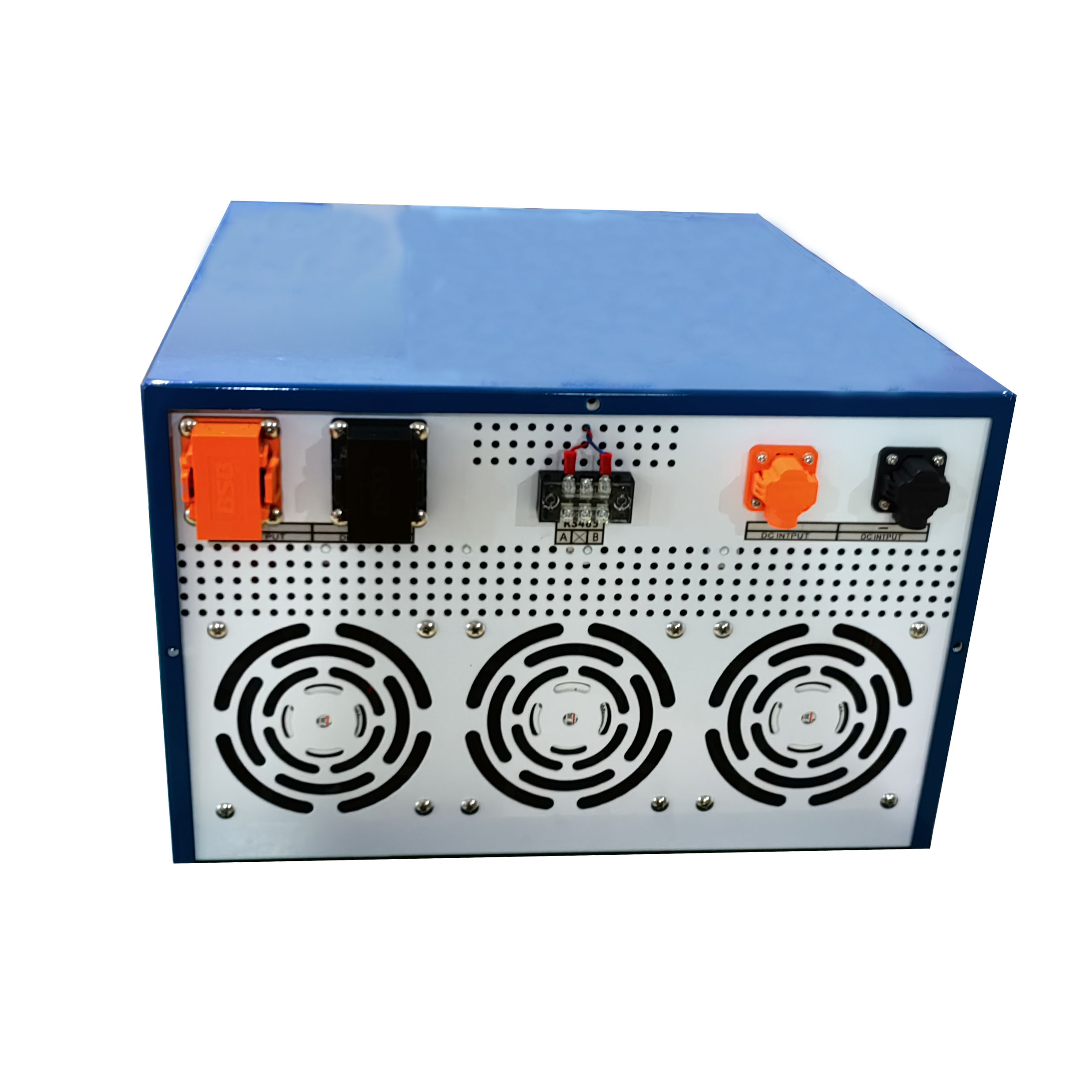

300-950V DC to 50-1000V DC output 40KW Smart charger
Main features:
- Energy-efficient and eco-friendly: High-efficiency operation across the entire load range and ultra-low standby power consumption, with efficiency exceeding 95.5%
- Ultra-wide input voltage range: Operates normally from 300 Vdc to 950 Vdc, adapting to a wide variety of input environments
- Ultra-wide output voltage range: 50 Vdc to 1000 Vdc, meeting the fast-charging needs of various electric vehicles and battery packs
- Wide constant-power output range: Constant-power output from 300 Vdc to 1000 Vdc, meeting the fast-charging needs of various electric vehicles
- No current reduction at low voltage: Can maintain a maximum output of 133.3A at voltages below 300Vdc, meeting the fast-charging needs of more devices
- High power density: Greater than 65W/in³, saving space inside the charging station and reducing the footprint of the charging station
- Emergency stop function: Rapidly responds to system emergency shutdown actions, ensuring safety and reliability
- Noise Mode Settings: Three adjustable noise modes to meet noise control requirements in different environments
- Fan Speed Reporting: Allows users to adjust the charging station’s fan speed based on the module’s fan speed, further optimizing noise levels
- Intelligent Airflow Detection: Monitors airflow smoothness; automatically limits power and triggers an alarm when airflow is obstructed
- High Environmental Reliability: Key circuits are potted with resin, significantly enhancing resistance to salt fog, humidity, and mold
- Built-in Discharge Circuit: Automatically discharges residual charge, simplifying system design and improving system safety
- Battery Reverse Charge Protection: Effectively protects the battery while ensuring reliable and safe system operation
Category
Name
Parameter
Environmental conditions
Operation temperature
-40°C ~ +75°C, derating is require when the temperature is above 55°C.
Storage temperature
-40°C ~ +70°C
Relative humidity
≤95%RH, without condensation
Cooling mode
Forced air cooling
Altitude
2,000 m a.s.l., derating is require when the altitude is above 2,000 m a.s.l.
Atmospheric pressure
79 kPa ~ 106 kPa
DC input
Input system
DC+/DC- + PE
Rated voltage
300-950Vdc
Max Voltage
1000Vdc
Rated Voltage
800Vdc
Max Current
66.6a
Standby Power Consumption
<20 W at rated 800Vdc input
DC output
Voltage range
150~1000V
Current range
0~133A(Rate-limiting points can be set)
Rated current
40A (required for setting of current limiting point)
Steady voltage precision
<±0.5%(150-1000V,0~20MHz)
Steady current precision
≤±1% (rated range of 20% ~ 100% for output load)
Load regulation rate
≤±0.5%
Startup overshoot
≤±3%
Peak-to-peak value noise
≤1% (150~1000V, 0~20MHz)
Efficiency
Under Rated input voltage
≥95％，@1000V，full load
