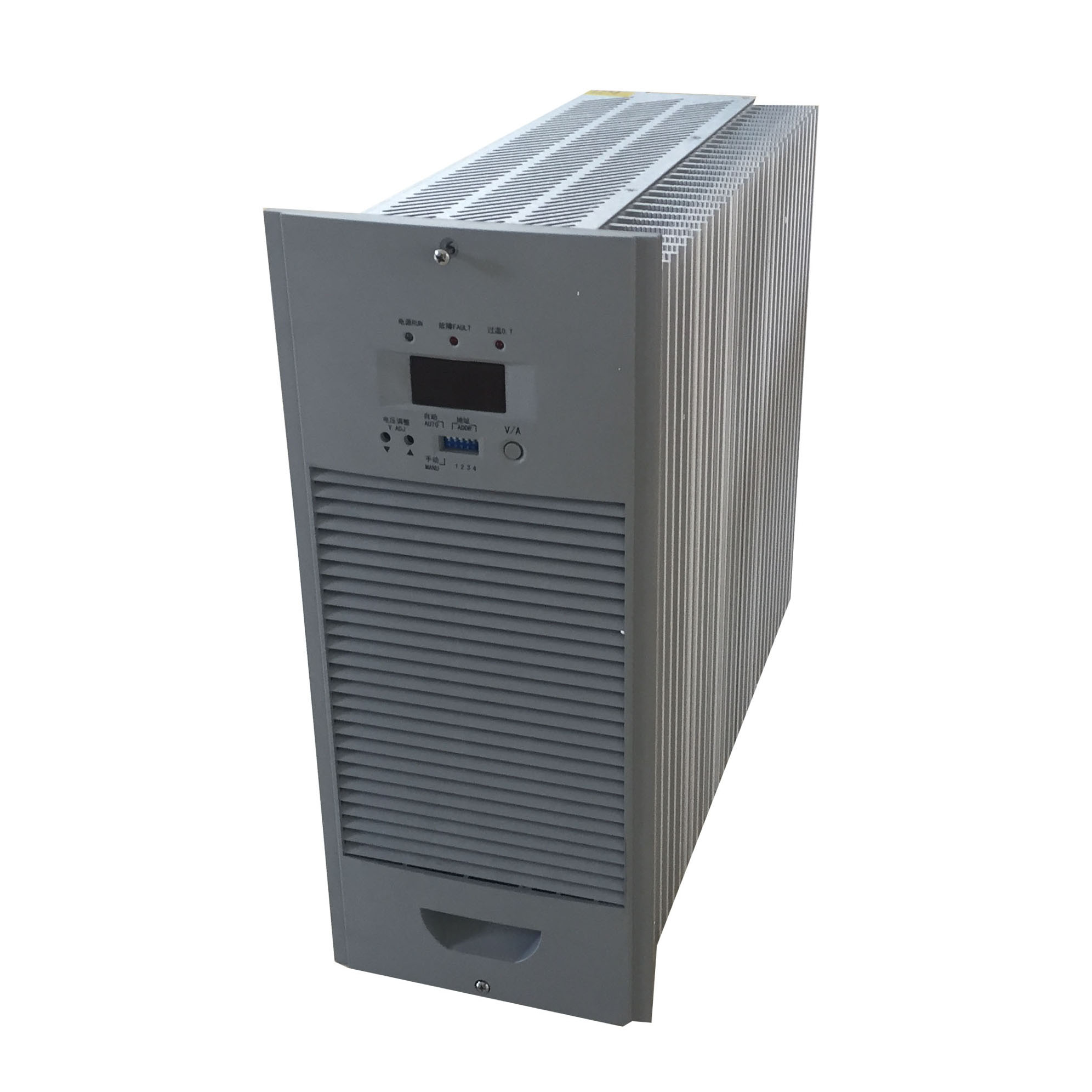

3 phase 110VDC 40A Economy charger
System performance
110V natural cooling rectifier is the most favorable product with distinctive design. By using radiator instead of fan, realize a high adaptability on operation conditions and high reliability.
Main Features
- Natural cooling
- Modular design, N+1 pc(s) backup
- Intuitive display by LED screen
- High efficiency, up to 94%-95%
- Power factor≥0.93
- Load share, imbalance≤3%
- Current limit and multi-protection function
- Hot swappable, convenient maintenance
- RS485 communication interface
Product Parameter
|
Technical specification |
|
|
Model BZA- |
110D40ZZ-3 |
|
AC input |
|
|
Input voltage |
380VAC±20% |
|
Input phase |
3-Phase |
|
Power factor |
≥93% |
|
Input frequency |
45 to 65Hz |
|
DC output |
|
|
Output voltage |
95-150VDC (Nominal 110VDC) |
|
Default output voltage |
117VDC |
|
Rated output current |
40A |
|
Max output power |
6000W |
|
Output current limit |
105% rated output current |
|
Efficiency |
≥94 |
|
Voltage accuracy |
±0.5% |
|
Current accuracy |
±1% |
|
Ripple |
≤0.2% |
|
Load share imbalance |
≤±3% |
|
Features |
|
|
Communication interface |
RS485 |
|
Load capability |
100% continuous output current |
|
Indicators |
LED indicator for AC mains, rectifier failure, Over temperature; |
|
Protection and alarms |
Input under/over voltage, output under/over voltage, output current limit, over temperature, short circuit protection, phase loss |
|
Insulation |
2.1kVac input-earth |
|
Mechanical |
|
|
Weight (kgs) |
16kgs |
|
Environmental |
|
|
Cooling Method |
Natural cooling |
|
Temperature rise |
≤30℃ |
|
Noise（dB） |
<50dB |
|
Storage temperature |
-40/+60℃ |
|
working temperature |
-10/+40℃ |
|
Humidity |
95% RH non-condensing |
|
Altitude |
≤2000m |
